Hydraulic Machining Process Concrete Pump SANY 51M Boom Sections for Building

Name: Hydraulic Machining Process Concrete Pump SANY 51M Boom Sections for Building
Brand: Hunan Concrete Power Brothers Heavy Industry & Technology Co., Limited
SKU: 62 м
Price: 130000.00 USD
Availability: InStock

Детали продукта

Место происхождения: КИТАЙ

Фирменное наименование: SANY

Номер модели: 62 м

Условия оплаты & доставки

Количество мин заказа: 1 раздел

Упаковывая детали: Roro Ship, грузовой массовый корабль

Лучшая цена

Детали продукта

Характер продукции

Детали продукта

Выделить:

Модель №.:	СИМ5360THBFGS	Насос год:	2022
Максимальная высота ткани:	51 м	Состояние:	Использовал
Номер вала:	3	Режим привода:	6x2
Макс. полезная мощность двигателя:	348 кВт	снаряженная масса:	35870кг

Модель №.:	СИМ5360THBFGS
Насос год:	2022
Максимальная высота ткани:	51 м
Состояние:	Использовал
Номер вала:	3
Режим привода:	6x2
Макс. полезная мощность двигателя:	348 кВт
снаряженная масса:	35870кг

Характер продукции

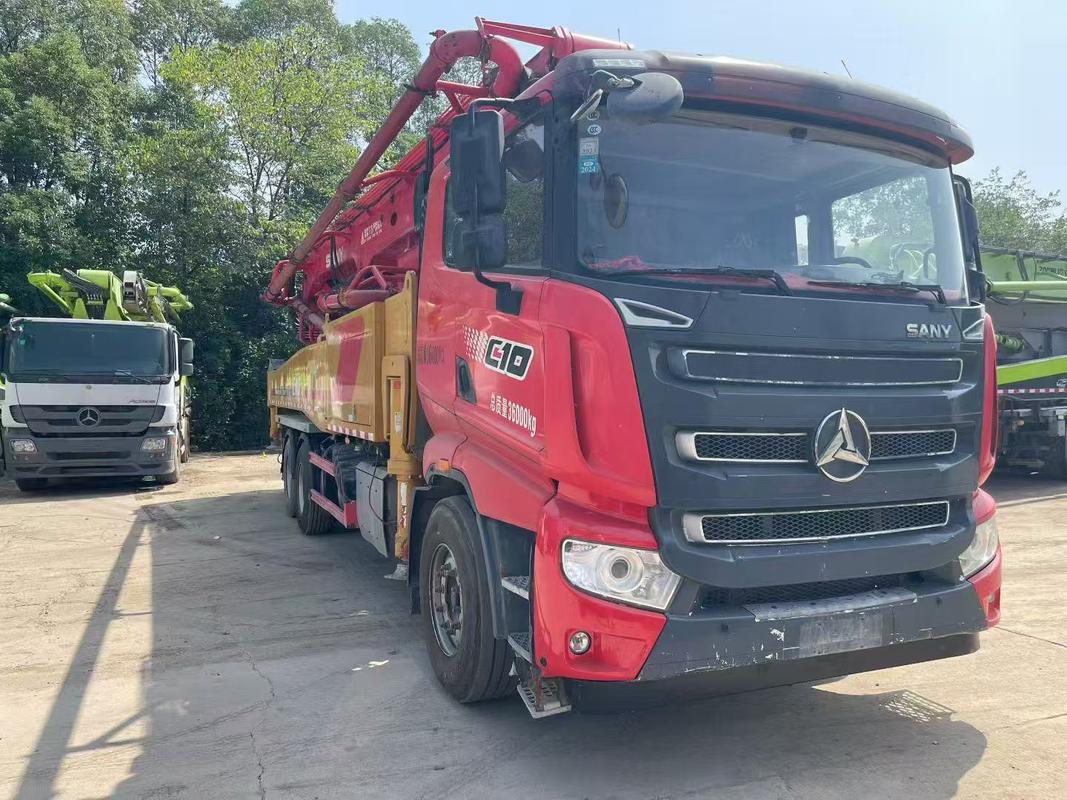

2022 Hydraulic Machining Process Concrete Pump SANY M51 Boom Sections for Building

Key Features

High-Efficiency Pumping System: A large-capacity hopper effectively improves pumping efficiency.
Intelligent Boom Technology: Equipped with an intelligent boom system, it supports one-touch positioning, enabling quick and accurate positioning for all pumping conditions. Furthermore, it utilizes fourth-generation composite vibration reduction technology, utilizing flexible pumping control, variable frequency vibration damping, and active vibration reduction to ensure smoother operation.
Energy Saving and Consumption Reduction: Utilizing engine power self-matching technology, it perfectly matches pumping conditions to the engine's characteristic curve, ensuring optimal fuel consumption.
Highly Reliable Hydraulic System: Based on an open-loop hydraulic system, it pioneers a cast integrated valve block, extending the life of hydraulic components. A multi-stage filtration system ensures hydraulic cleanliness reaches NaS7, significantly reducing the risk of pump and valve sticking.
Excellent Safety and Flexibility: Equipped with multiple safety features (such as overload protection and emergency stop). The boom can lay materials horizontally at ±360°, and the last boom can realize 180° reverse hook, which makes the laying range wider and more flexible to deal with complex working conditions.

Specifications

Brand name	SANY
Pump model	SYM5360THBFS
Pump year	2022
Boom sections	4 SECTIONS RZ FOLD
Vertical Reach	50.1M
Horizontal Reach	45M
Max Concrete Output	180m3/h
Concrete Press.	12 MPa
Radio Remote control	concrete pump remote controller
Radio Remote Brand	remote controller HBC
Condition	Used but stable condition
Repair standard	Basic maintenance
Truck brand	SANY chassis
Engine Type	Diesel
Dimension(LWH)	1235025504000mm
Total Weight	36000kg
Maintenance items	Hopper accessory; sheet metal;check and test all system; cleaning
